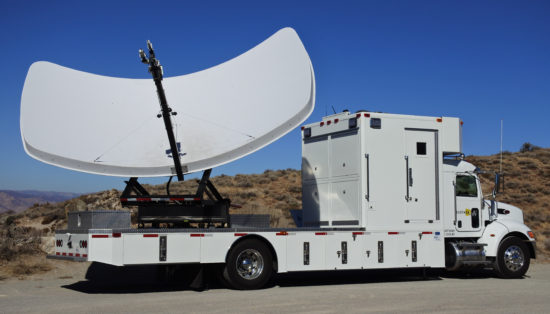

HD 3 is our latest custom engineered uplink, featuring a high gain C-band antennae and a full complement of cutting edge equipment. Perfect for handling the REMI operations of the future, or exceptional performance in UHD broadcast.
Call our office for bookings and inquiries.
FEATURES AND EQUIPMENT
TRANSMISSION
- Comtech Offsat 5.5m C-Band Antenna
- 3 Port C-Band Feedhorn (1 Polarity Up, Both Polarities Down)
- CPI T04CO C-Band Transmitters and VPC
- Newtec FRC0740 L-Band Upconverters
- Avcom SNG-2500C Spectrum Analyzer
- Teamcast Vyper Satellite Modulators
- DVBS/S2, QPSK/8PSK/16APSK/32APSK
- (12x) Adtec MPEG4 Encoders
- (24x) MediaKind HEVC Encoders (Configurable as 6x UHD encoders)
- (2x) Adtec DTA 3050 10-input Muxs
- (2x) Adtec RD-71 Decoders
- (2x) MediaKind RX1 Decoders
- (2x) Tandberg AVC/HEVC Decoders
PRODUCTION
- (2x) AJA FS-1 Frame Synchronizers
- (2x) Harris X-50 Frame Synchronizers
- (12x) Cobalt HD/SD Reclocking DAs
- Hyperdeck Studio Mini SD Card Recorder
- AJA Ki Pro Ultra
- Evertz Fiber Media Converter kit for (16x) HD/SDI/ASI over (2x) fiber
MONITORING
- Leader LV7600 UHD SDI Rasterizer
- Ikegami UHD Multi-Format Monitor
- Decimator MIV with 16 Inputs
- Wohler AES Audio Monitor
- DekTec DTA-2145 Transport Stream Analyzer
COMMUNICATIONS
- Telular Cell Phone
- RTS Intercom System
- Cellular Internet Access
POWER:
- Shore Requirements: 100 Amp, 208 V, Single Phase
- 250 Ft. Camlock & Tails
- 25kW Cummins/Onan PTO Generator
EXTRAS
- 1000+ ft. Single Mode Fiber
- (2x) DirecTV HD IRDs
- V-Tune Pro Digital OTA Tuner

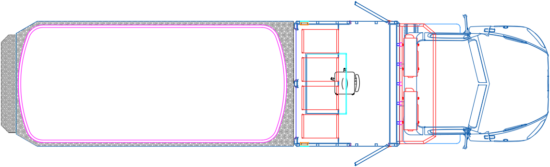

DIMENSIONS AND LAYOUT
38 ft long
8 ft wide (11 ft with ladders down)
