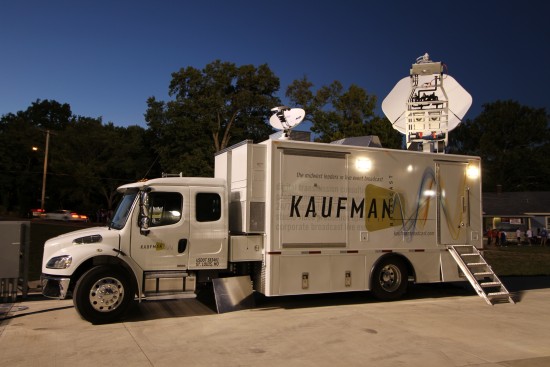

Custom designed and wired by our own engineers, HD 2 is the pride and joy of our engineering team. HD 2 is a hybrid Ku/C band truck with plenty of table and floor space, pre-wiring and easy rack access, and equipment to support your production and transmission needs.
Call our office for bookings and inquiries.
FEATURES AND EQUIPMENT
TRANSMISSION:
- Vertex 2.4m C/Ku-Band Antenna
- 2 Port C-Band Feedhorn
- Either Polarity Up, Same Polarity Down
- 4 Port Ku-Band Feedhorn
- Both Polarity Up, Both Polarity Down
- MCL MT3200A Ku-Band Transmitters with MCL VPC
- MCL MT3400 C-Band Hub Mounted Transmitters with Apollo VPC
- Miteq U-9696 70MHz Ku-band Upconverters
- Miteq U-9793-670MHz C-Band Upconverters
- Avcom SNG-2500C Spectrum Analyzer
- Newtec AZ110 Modulators
- DVB-S/S2, QPSK/8PSK/16APSK
- Tandberg SM6620 Modulators
- DVB-S/S2, QPSK/8PSK
- (2x) Adtec EN-81 MPEG2/MPEG4 HD/SD Encoders
- (11x) Adtec MPEG4 HD Encoders
- (2x) Adtec DTA 3050 10-input Muxs
- (2x) Adtec RD-60 HD/SD Decoders
- (1x) Adtec RD-70 HD/SD Decoder
PRODUCTION:
- Ross CrossOver 16 HD Video Switcher
- Yamaha 01V96 Digital Mixing Console
- (2x) AJA FS-1 Frame Synchronizers
- (2x) Harris X-50 Frame Synchronizers
- Evertz HD/SD Reclocking DAs
- (14x) Media Converters for HD/SD/ASI over fiber
- Multiple A/D and D/A Converters for both audio and video
MONITORING:
- Harris TVM-900 with Eye Pattern and Jitter Measurement
- Ikegami HLM-2450 HD Multi-Format Monitor
- Evertz VIP-X System with 16 inputs across 2 displays
- Evertz Xenon 32×32 HD/SD Video Router
- Evertz Xenon 64×64 AES Audio Router
- Harris Panacea 8×8 ASI Router
- Wohler AES Audio Monitors
- DekTec DTA-2145 Transport Stream Analyzer
- JBL Control 1 Reference Speakers
COMMUNICATIONS:
- (4x) Telular Cell Phones
- (2x) Telos One Hybrids
- (2x) Telos Link Intercom Interface
- RTS Intercom System
- RTS 4010 IFB System with multiple interrupt panels
- Cellular Internet Access
POWER:
- Shore Requirements: 100 Amp, 208 V, Single Phase
- 250 Ft. Camlock & Tails
- 20kW Generator
EXTRAS:
- Pre-wired rack space for any client-provided equipment
- 1000+ ft. Single-Mode Fiber
- Studio Tech Live Link (IFB/PL over fiber)
- (2x) DirecTV HD IRDs
- V-Tune Pro Digital OTA Tuner

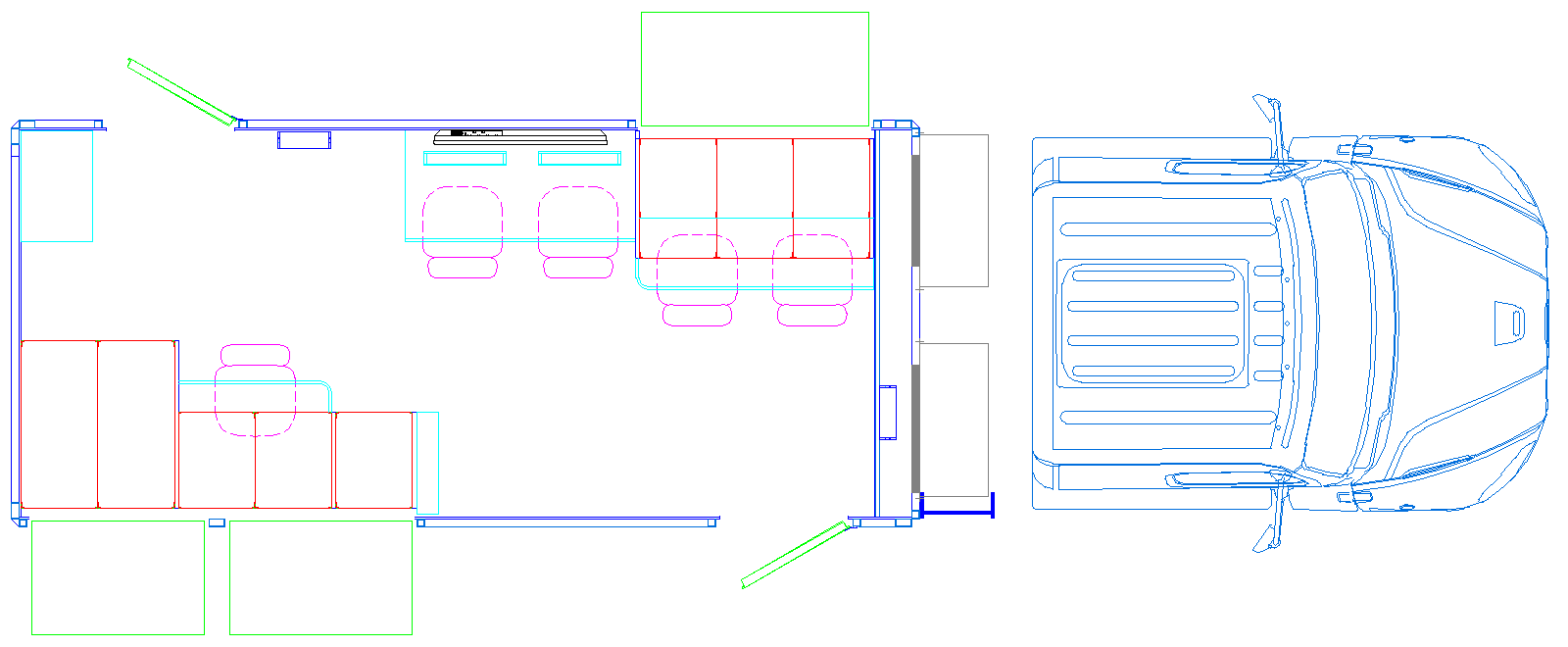

DIMENSIONS AND LAYOUT
35 ft long
8 ft wide (11 ft with ladders down)
13 ft 6 in tall (22 ft with dish deployed)
